AD 350 CU

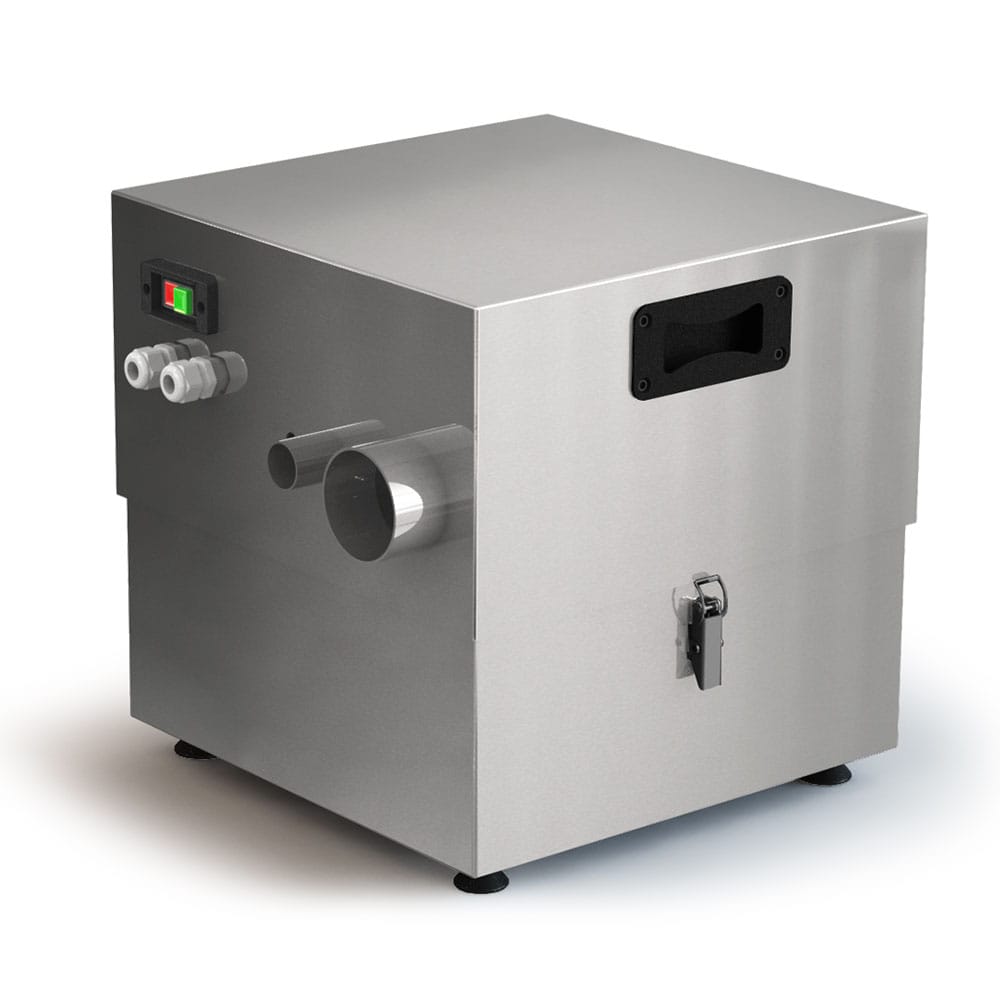

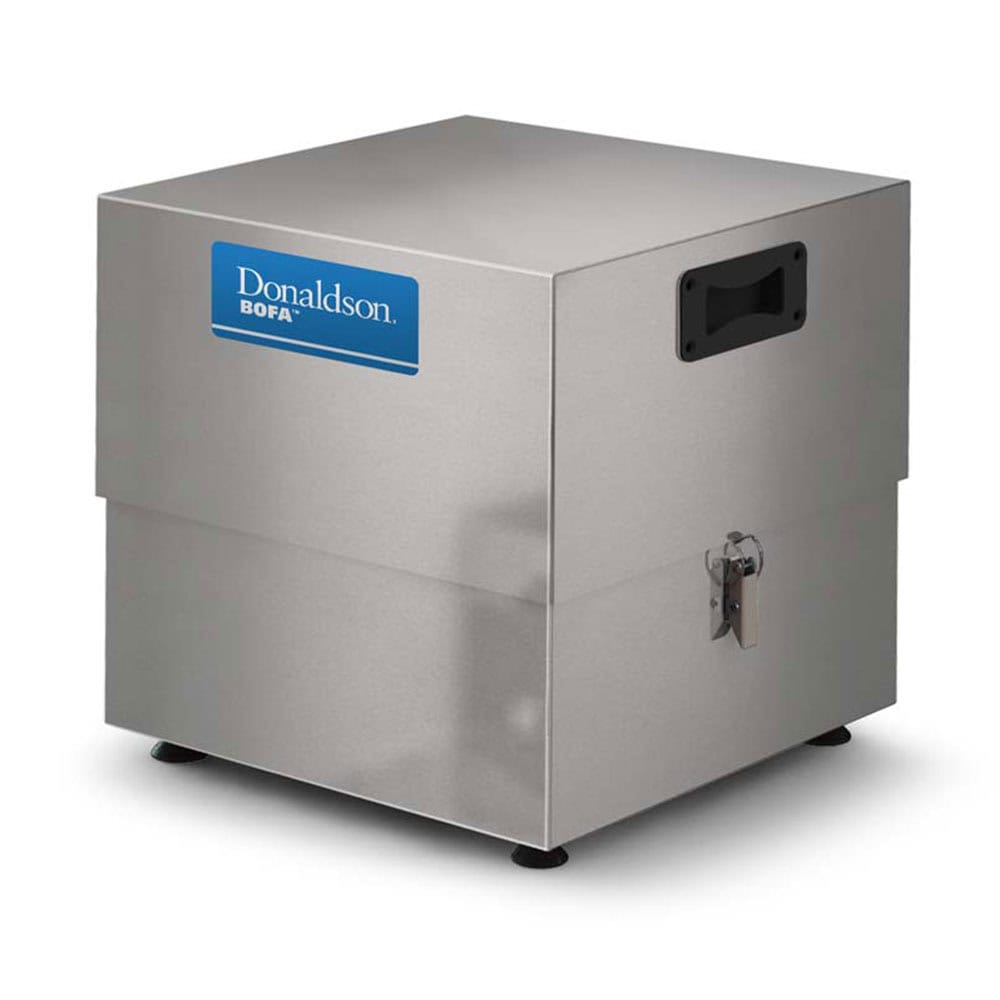

The Donaldson BOFA AD 350 CU is a filtered cooling unit designed for laser applications. It supplies filtered air to both the laser and the power supply module, helping to ensure optimal performance and reliability. It can also be used as a seal to increase the IP rating of the laser.
- Low-cost replacement filters
- Low noise levels
Approvals: UKCA and CE | UL†
†cUL | UL: Tested to the appropriate standards, but testing may be provided by alternate nationally recognized test laboratories. Certain product configurations may affect the certification. Please speak to your sales representative.
Features
Remote stop/start signal (optional)
Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.
Filter change signal (optional)
Our filter change signal alerts you when your filter is full and needs changing.

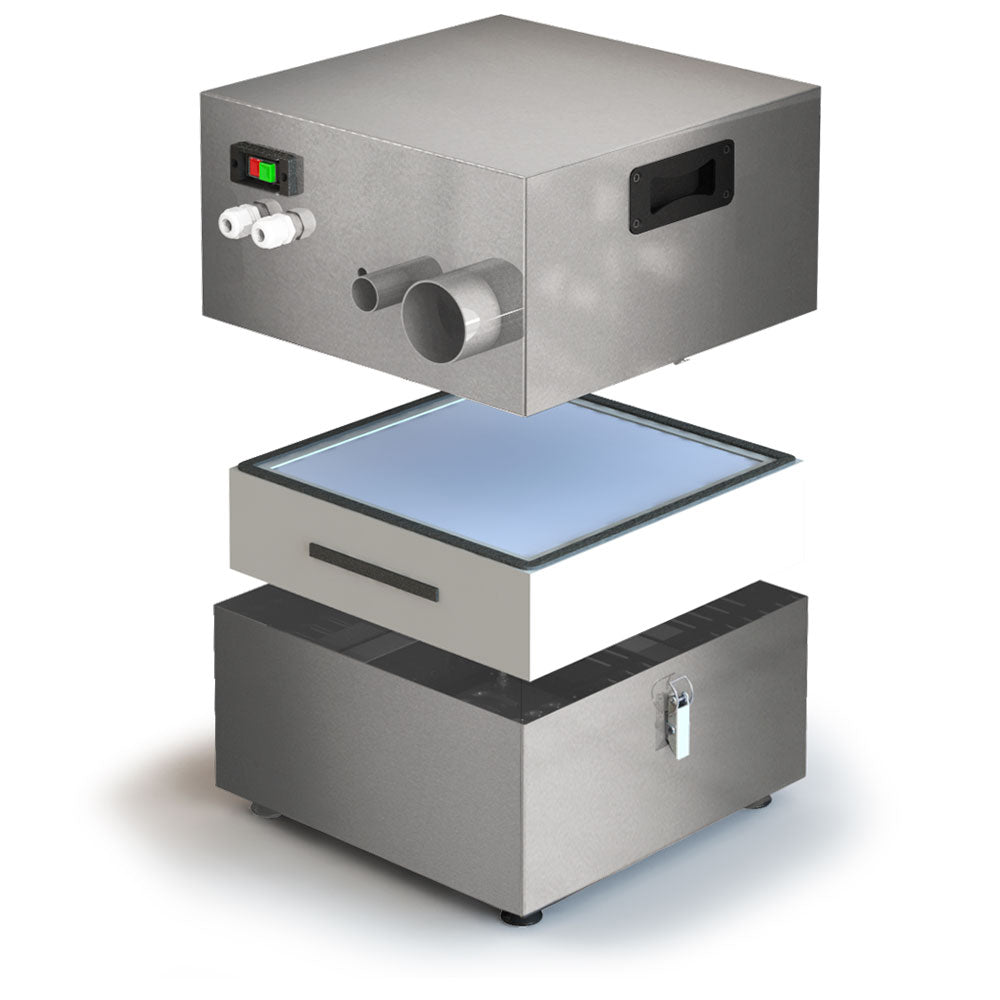

DeepPleat pre-filter
The DeepPleat pre-filter consists of a pleated filter allowing for increased surface area within a smaller volume. This means Donaldson BOFA filters last for a long time and do not take up a large footprint.
Technical specification
| Imperial | Metric | |
|---|---|---|
| Dimensions (HxWxD) | 15.8 x 15.0 x 16.5″ | 401 x 380 x 420mm |
| Weight | 41 lbs | 19 kg |
| Airflow / Pressure | 206 cfm | 350 m³/hr |
| Electrical data | 115 V 1 ph 50/60 Hz Full load current: 3.5 amps |
230 V 1 ph50/60 Hz Full load current: 2.0 amps |
| Noise level (at typical operating speed) | < 68 dBA | < 68 dBA |
| Cabinet construction | Brushed stainless steel | Brushed stainless steel |
