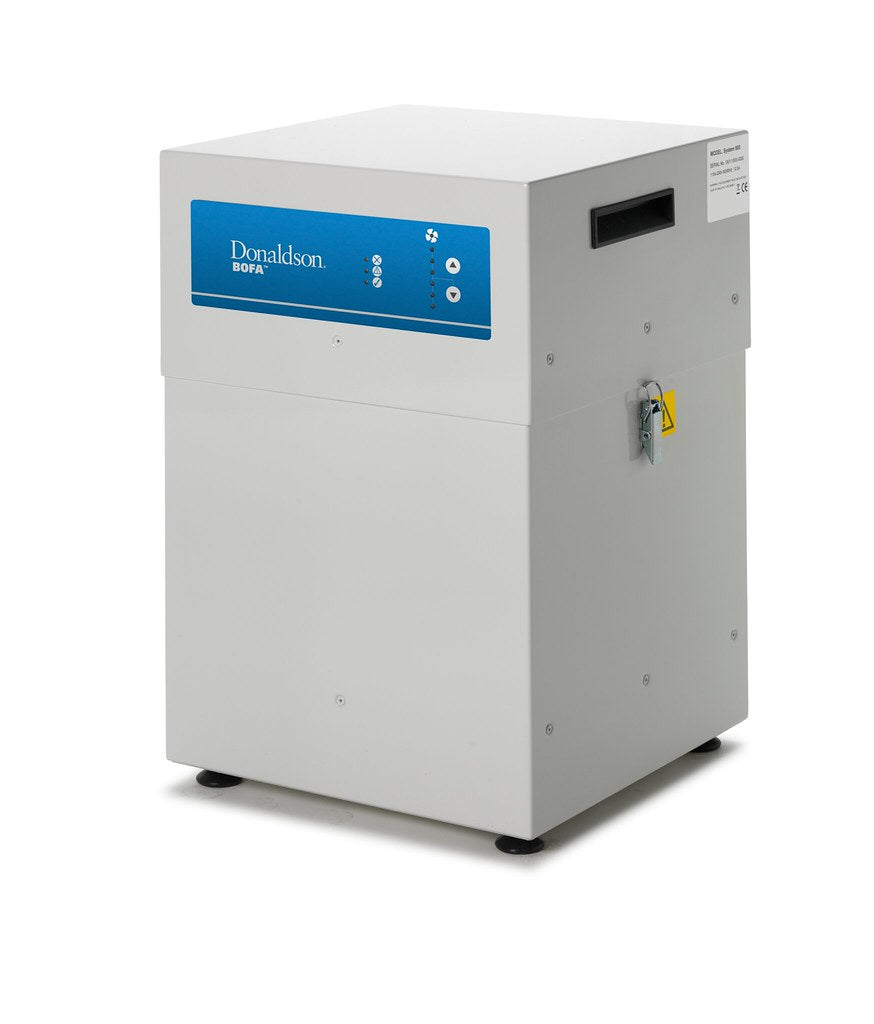

V 600
The V 600 fume extraction system is designed to filter fume from soldering and various electronics applications. It features a long-lasting filter, high airflow rates, and the capacity to support up to seven operators.
- Long-life, low-cost replacement filters
- High airflow rates
- Built-in silencing

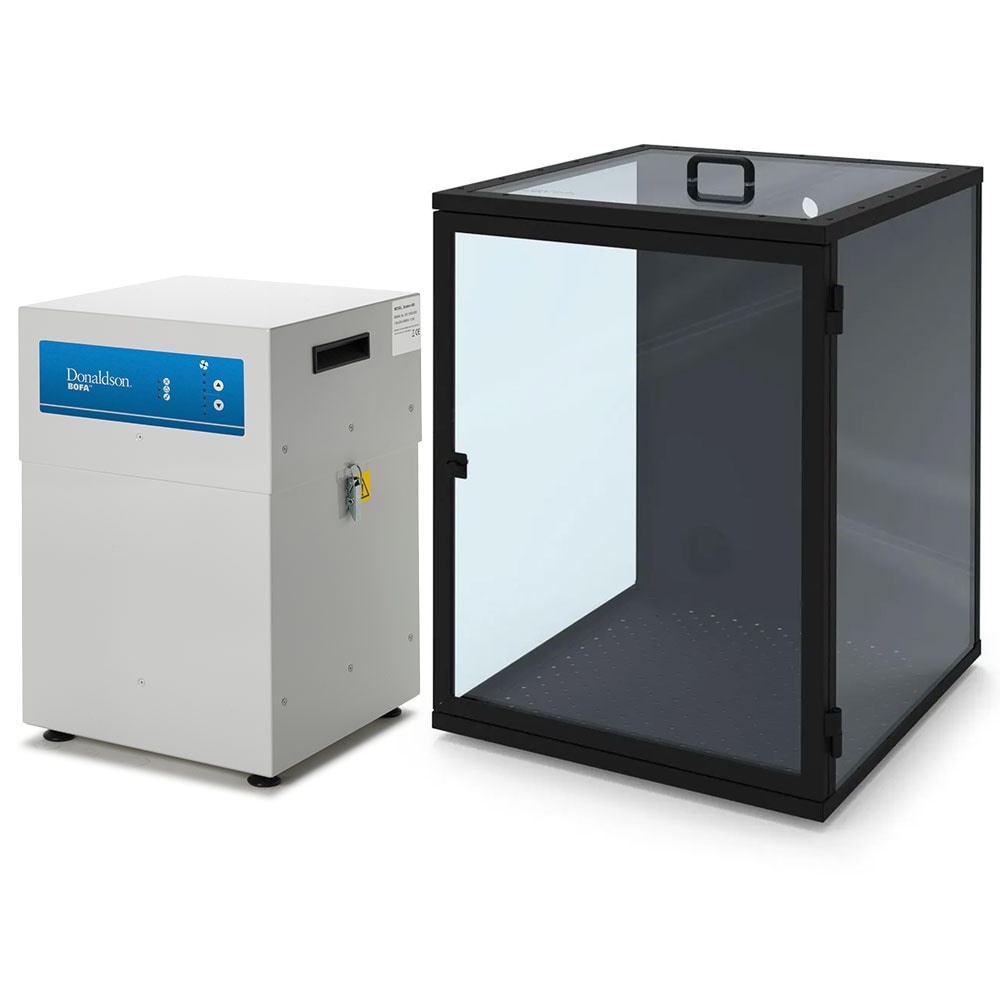

This system is also available as part of the Shield & V 600 bundle.
Approvals: UKCA and CE
Features
DeepPleat pre-filter
The DeepPleat pre-filter consists of a pleated filter allowing for increased surface area within a smaller volume. This means Donaldson BOFA filters last for a long time and do not take up a large footprint.
HEPA filter
Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.
Advanced carbon filters
Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.
Reverse flow air technology
Our reverse flow air technology reduces velocity and changes air direction, causing larger particulate to fall into the filter’s drop-out chamber. This decreases particulate entering the filter media, significantly enhancing filter capture performance, and extending filter life.
Multi-voltage sensing
Automatically senses the local voltage and adjusts accordingly.
System OK signal (optional)
Our system OK signal alerts you when there is a fault, and when filters are blocked, allowing you to schedule maintenance efficiently.
Remote stop/start signal (optional)
Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.
VOC sensor (optional)
Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.
Technical specification
| Imperial | Metric | |
|---|---|---|
| Dimensions (HxWxD) | 23.23 x 14.76 x 18.31” | 590 x 375 x 465 mm |
| Weight | 77 lbs | 35 kg |
| Airflow / Pressure | 206 cfm / 96 mbar | 350 m³/hr / 96 mbar |
| Electrical data | 115-230 V 1 ph 50/60 Hz Full load current: 12.5 amps / 1.1 kw |
115-230 V 1 ph 50/60 Hz Full load current: 12.5 amps / 1.1 kw |
| Noise level (at typical operating speed) | < 60 dBA | < 60 dBA |
| Cabinet construction | Powder-coated mild steel | Powder-coated mild steel |
