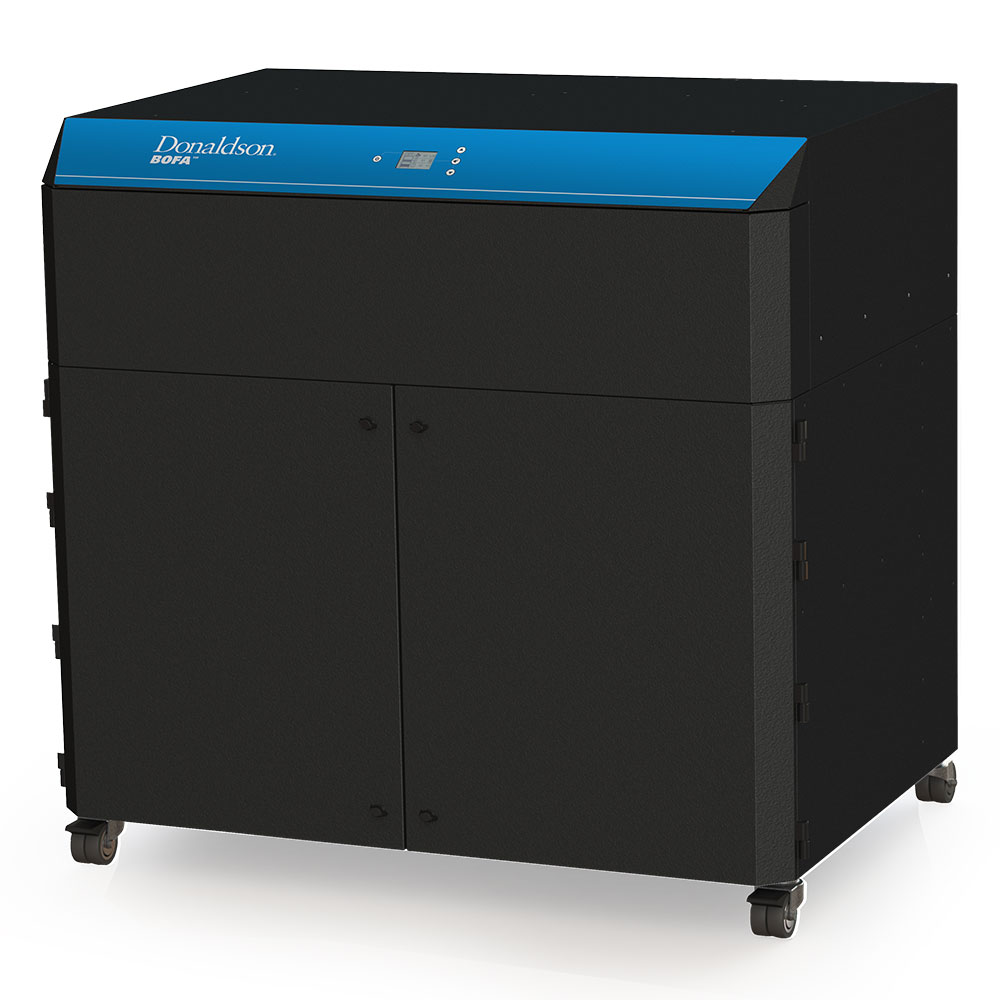

AD 2000 iQ
The Donaldson BOFA AD 2000 iQ fume extraction system is the perfect choice for the most demanding laser applications where high-performance extraction is required. The design also allows for greater flexibility of different exhaust installations and configurations.
- High contrast display
- Real-time airflow reading
- Remote diagnostics via USB
Approvals: UKCA and CE | cUL | UL†
†cUL | UL: Tested to the appropriate standards, but testing may be provided by alternate nationally recognized test laboratories. Certain product configurations may affect the certification. Please speak to your sales representative.
Features
Intelligent Operating System (iQ)
Our Intelligent Operating System (iQ) provides easy-to-access real-time data on your extraction system’s performance. It offers multiple performance enhancements, including improved extraction efficiency, individual filter status monitoring, and integrated design features designed to lower the cost of ownership.

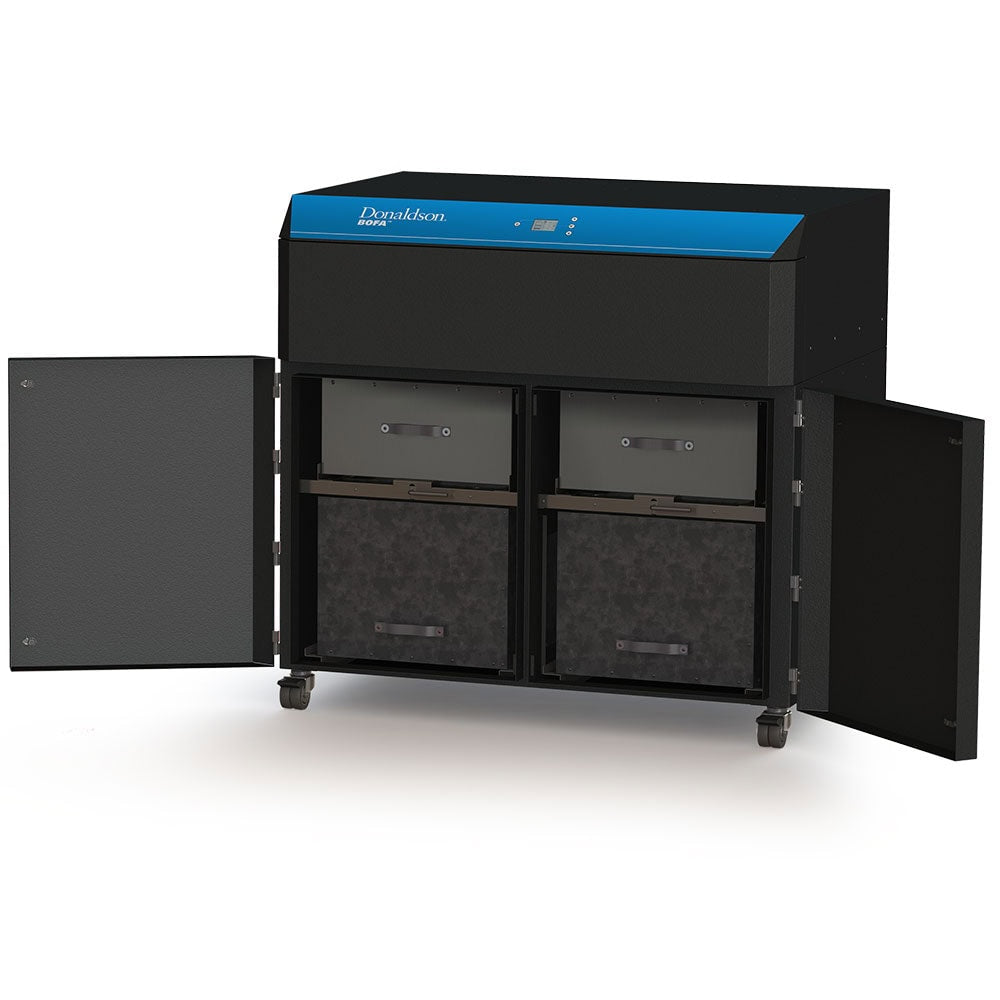

DeepPleat DUO pre-filter
Our DeepPleat DUO pre-filter is designed to maximize filter life. It incorporates a large capacity drop-out chamber within the filter which is designed to act as a pre-separator helping to extend the life of the pre-filter which in turn protects against the premature blocking of the HEPA filter.
HEPA filter
Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.
Advanced carbon filters
Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.
Reverse flow air technology
Our reverse flow air technology reduces velocity and changes air direction, causing larger particulate to fall into the filter’s drop-out chamber. This decreases particulate entering the filter media, significantly enhancing filter capture performance, and extending filter life.
Automatic flow control
Automatic flow control allows the user to pre-set the correct airflow rates for the specific application, subsequently helping to maintain the airflow. This generates lower noise levels and helps to protect the more expensive HEPA filters.
System OK signal (optional)
Our system OK signal alerts you when there is a fault, and when filters are blocked, allowing you to schedule maintenance efficiently.
Remote stop/start signal (optional)
Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.
VOC sensor (optional)
Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.
Technical specification
| Imperial | Metric | |
|---|---|---|
| Dimensions (HxWxD) | 50.39 x 53.54 x 39.57” | 1280 x 1360 x 1005 mm |
| Weight | 750 lbs | 340 kg |
| Airflow / Pressure | 1470 cfm / 96 mbar | 2500 m³/hr / 96 mbar |
| Electrical data | 208 V / 3 ph / 60 Hz / 6.6 kw / L1, L2, L3 20A - N 35A | 415 V / 3 ph / 50 Hz / 6.6 kw / L1, L2, L3 16A - N 28A |
| Noise level (at typical operating speed) | 75 dBA | 75 dBA |
| Cabinet construction | Powder-coated mild steel | Powder-coated mild steel |
