AD Base 1 Oracle

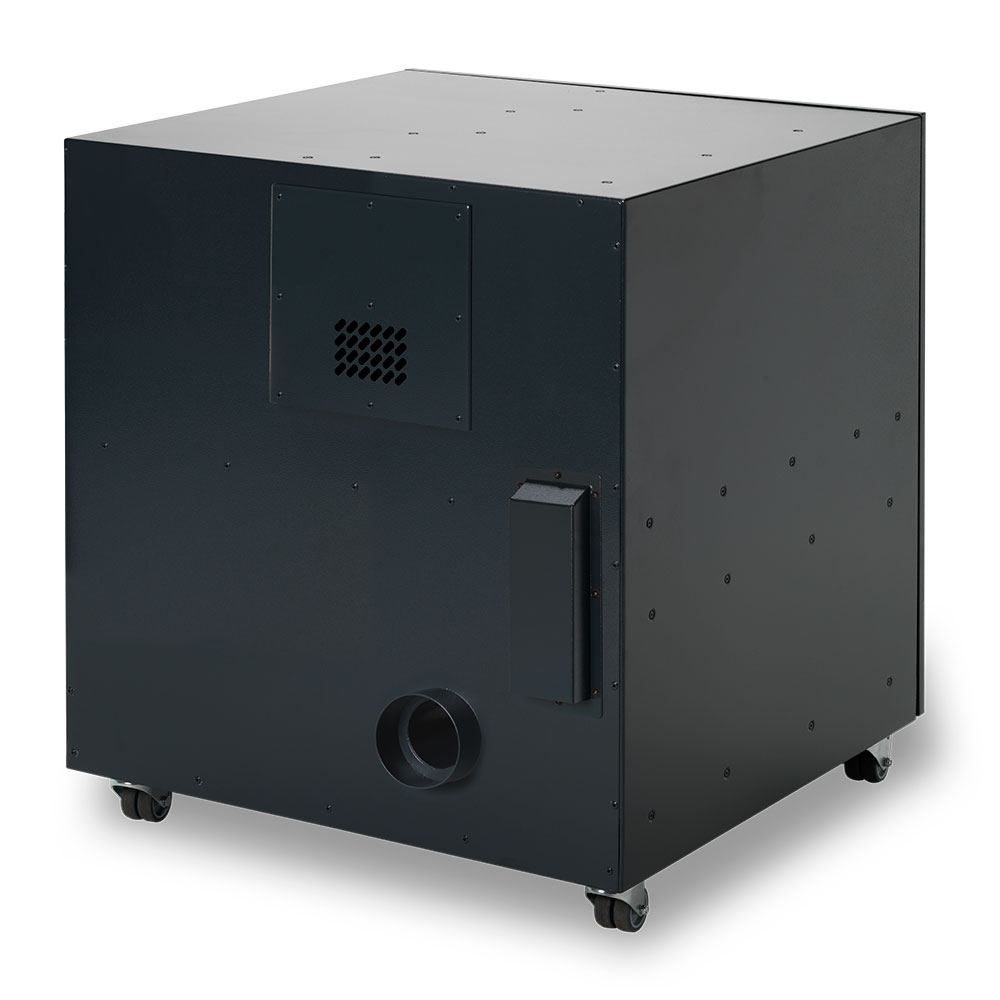

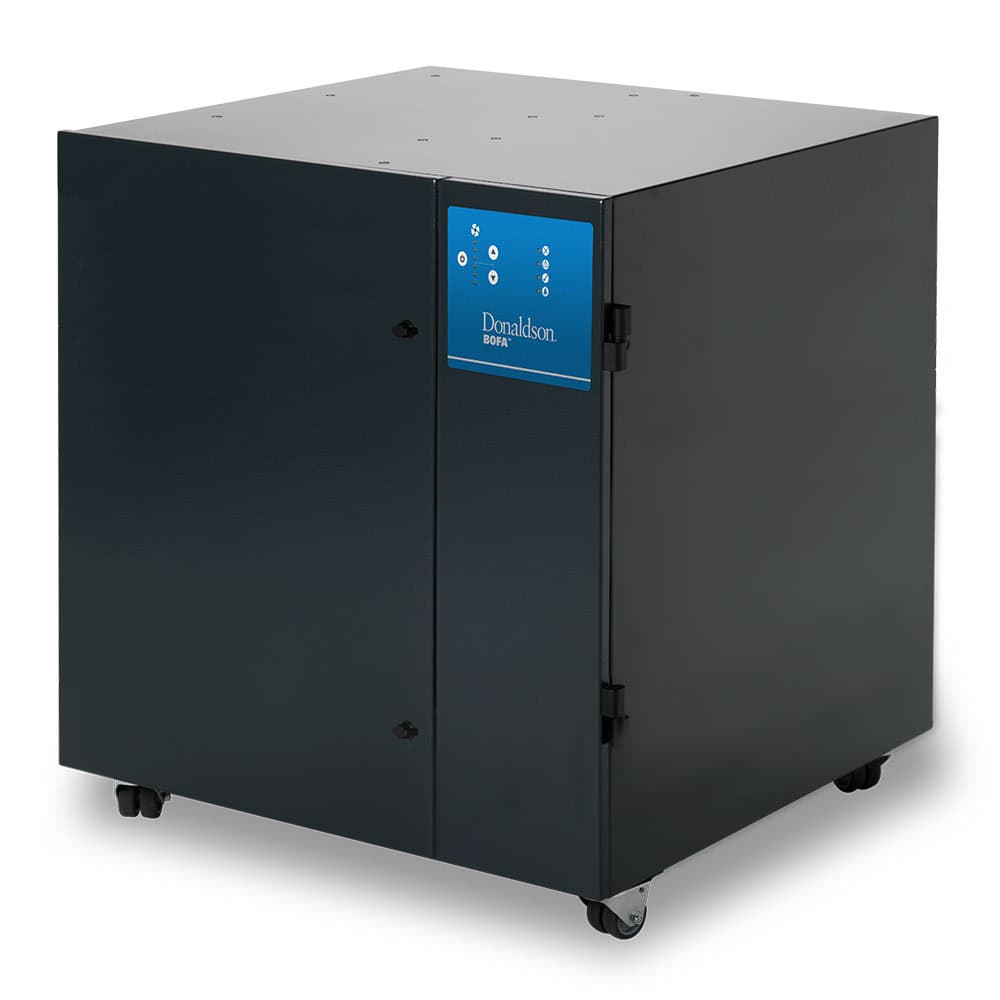

The Donaldson BOFA AD Base 1 Oracle is a ride-on fume extraction system for laser engraving. It delivers high performance in a convenient ride-on format, allowing the laser extractor to function as a workstation.
- Low noise levels
- Ride-on system
- Blower with high airflow and pressure
Approvals: UKCA and CE
Features

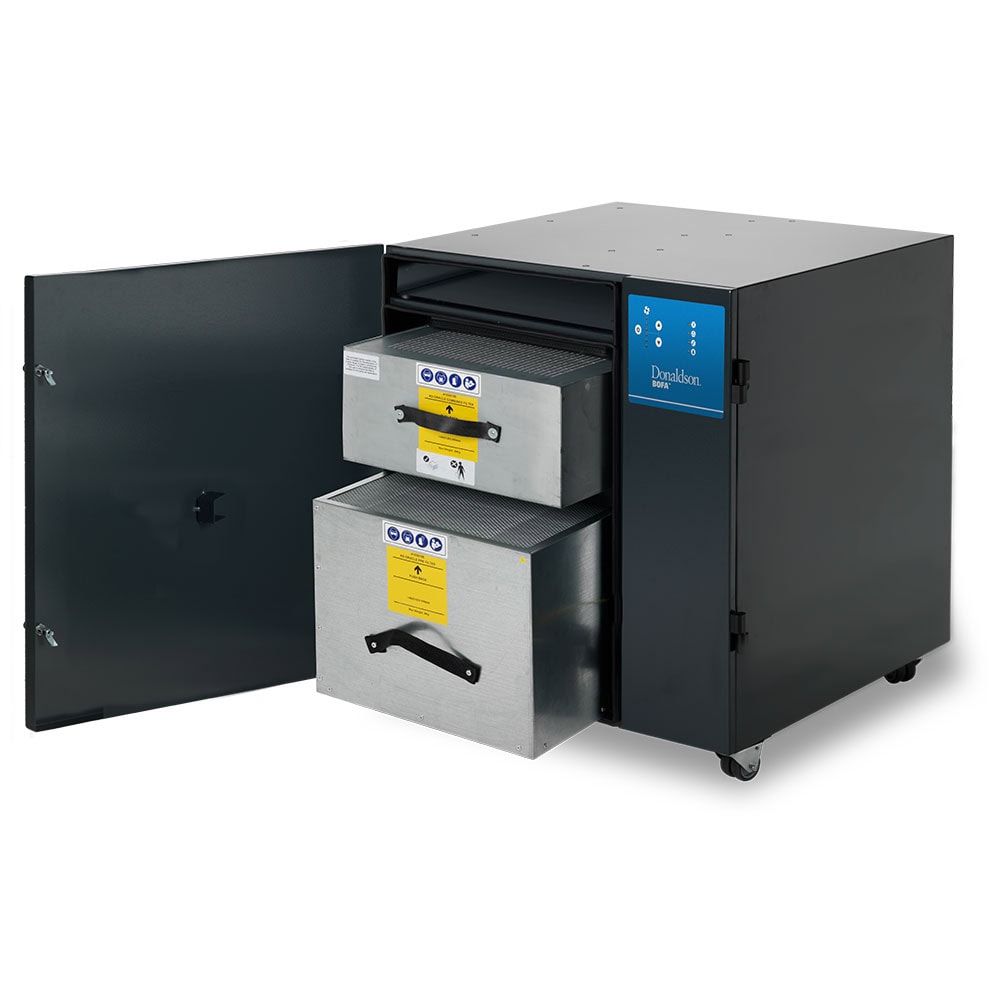

DeepPleat DUO pre-filter
Our DeepPleat DUO pre-filter is designed to maximize filter life. It incorporates a large capacity drop-out chamber within the filter which is designed to act as a pre-separator helping to extend the life of the pre-filter which in turn protects against the premature blocking of the HEPA filter.
HEPA filter
Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.
Advanced carbon filters
Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.
Reverse flow air technology
Our reverse flow air technology reduces velocity and changes air direction, causing larger particulate to fall into the filter’s drop-out chamber. This decreases particulate entering the filter media, significantly enhancing filter capture performance, and extending filter life.
Automatic flow control
Automatic flow control allows the user to pre-set the correct airflow rates for the specific application, subsequently helping to maintain the airflow. This generates lower noise levels and helps to protect the more expensive HEPA filters.
Multi-voltage sensing
Automatically senses the local voltage and adjusts accordingly.
System OK signal (optional)
Our system OK signal alerts you when there is a fault, and when filters are blocked, allowing you to schedule maintenance efficiently.
Onboard compressor (optional)
Our onboard compressor is designed to provide the laser with its air supply requirements. Unlike standalone air compressors, our onboard compressor sits inside the extraction system for a simpler, more compact installation.
Remote stop/start signal (optional)
Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.
VOC sensor (optional)
Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.
Technical specification
| Imperial | Metric | |
|---|---|---|
| Dimensions (HxWxD) | 31.10 x 28.94 x 29.13” | 790 x 735 x 740 mm |
| Weight | 189 lbs | 86 kg |
| Airflow / Pressure | 224 cfm / 96 mbar | 380 m³/hr / 96 mbar |
| Electrical data | 115-230 V 1 ph50/60 Hz Full load current: 12.5 amps / 1.1 kw |
115-230 V 1 ph50/60 Hz Full load current: 12.5 amps / 1.1 kw |
| Noise level (at typical operating speed) | 64 dBA | 64 dBA |
| Cabinet construction | Powder-coated mild steel | Powder-coated mild steel |
