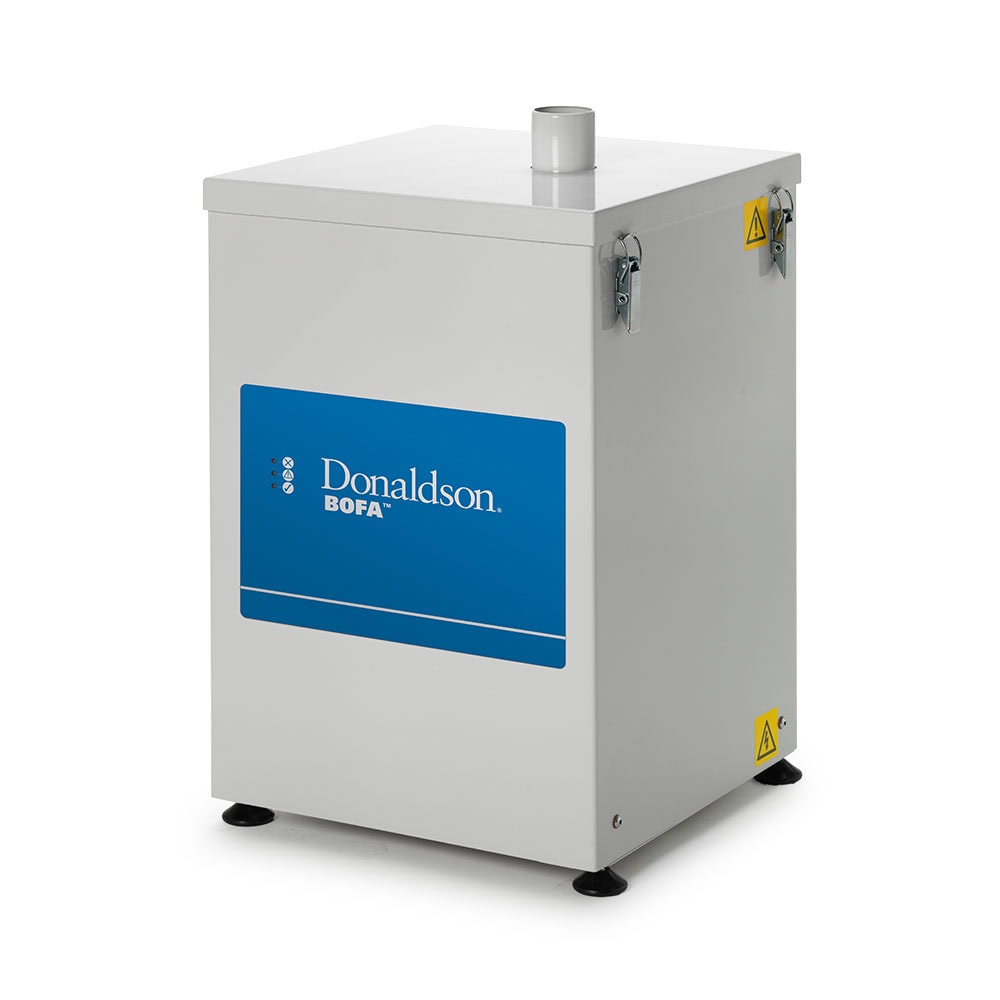

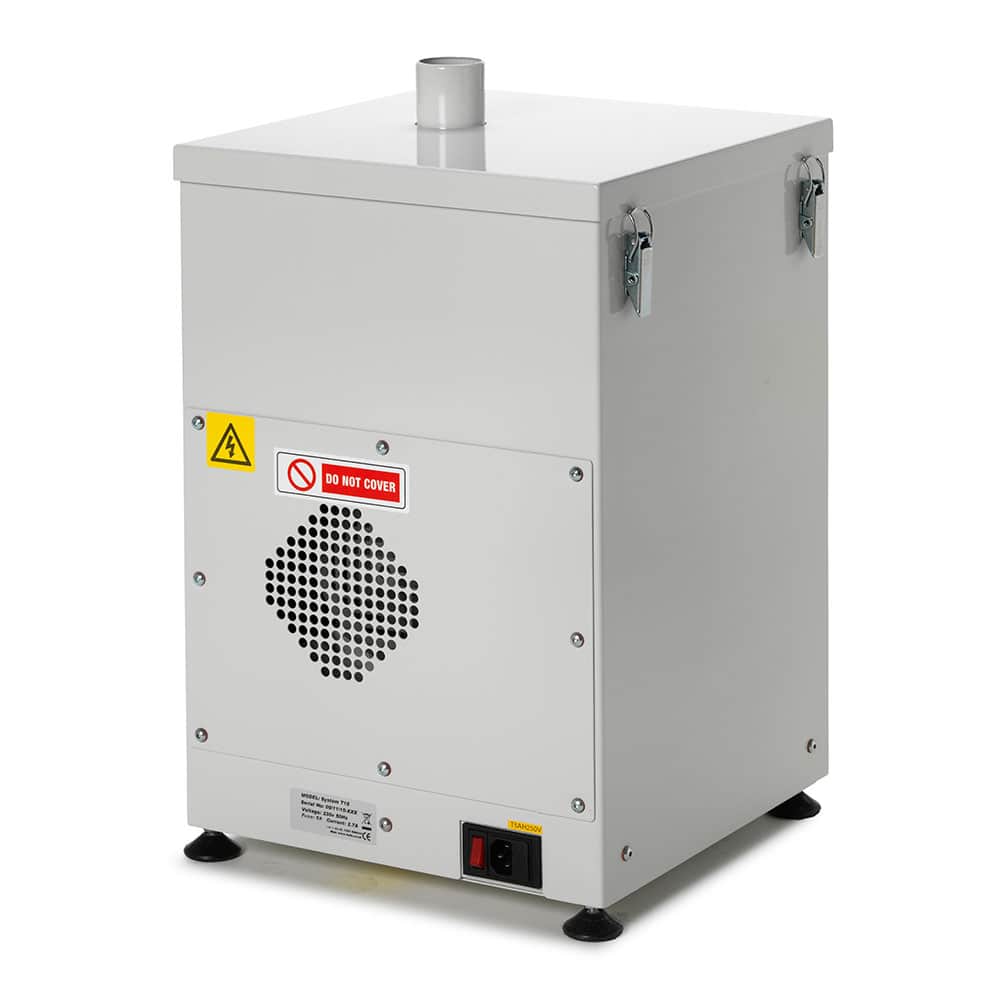

T 15
A multi-operator extraction system for hand soldering applications
Ideal For: Hand soldering, lead-free soldering.
The T 15 extraction system is designed to filter fumes and debris from hand soldering applications with up to 15 operators. Using small bore hoses and attachments, this portable system is ideal for microextraction and other close proximity applications.
- Compact design
- High vacuum pumps
- Low noise level
Approvals: UKCA and CE
Features

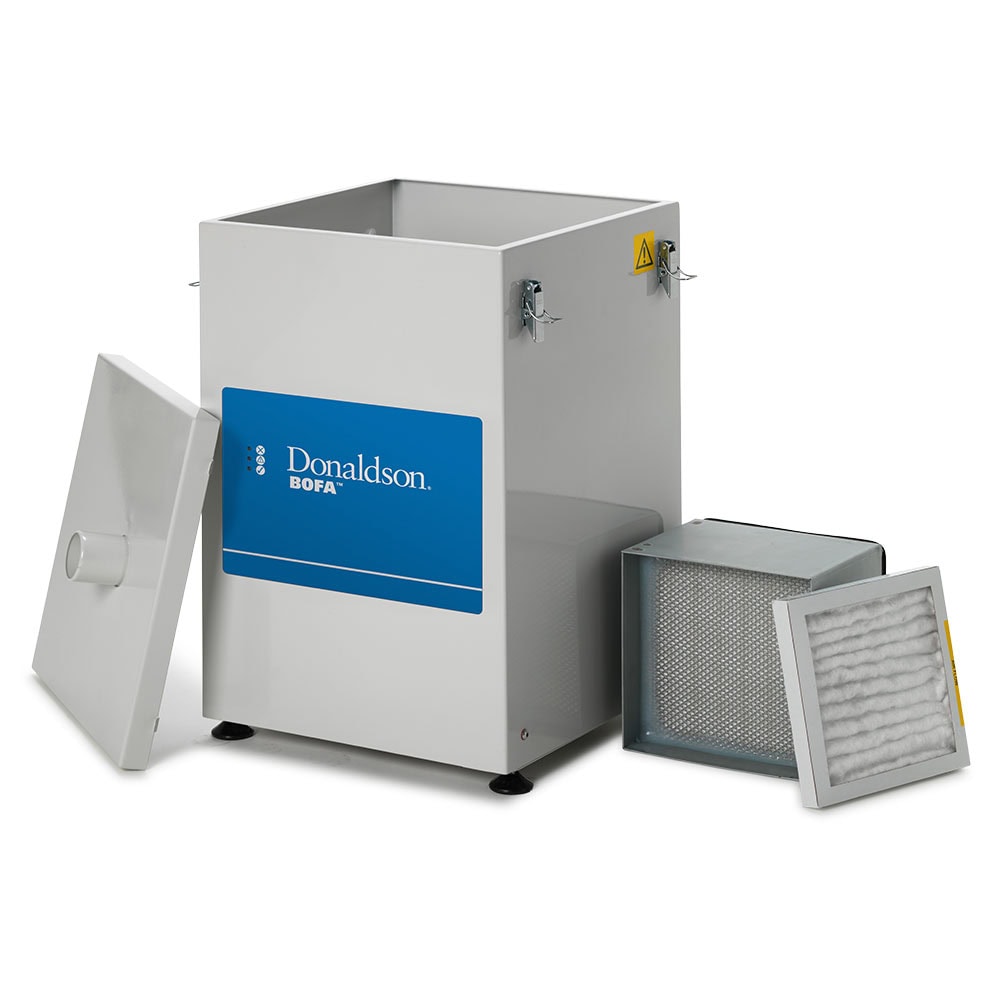

HEPA filter
Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.
Advanced carbon filters
Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.
Technical specification
| Imperial | Metric | |
|---|---|---|
| Dimensions (HxWxD) | 22.64 x 14.57 x 13.39” | 575 x 370 x 340 mm |
| Weight | 65 lbs | 29 kg |
| Airflow / Pressure | 22 l/min per tip | 22 l/min per tip |
| Electrical data | 115 V 60/50 Hz Full load current: 6amps / 0.45 kw | 230 V Single-phase 1~ 50/60 Hz Full load current: 2.7 amps / 0.4 kw |
| Noise level (at typical operating speed) | < 65 dBA | < 65 dBA |
| Cabinet construction | Powder-coated mild steel | Powder-coated mild steel |
