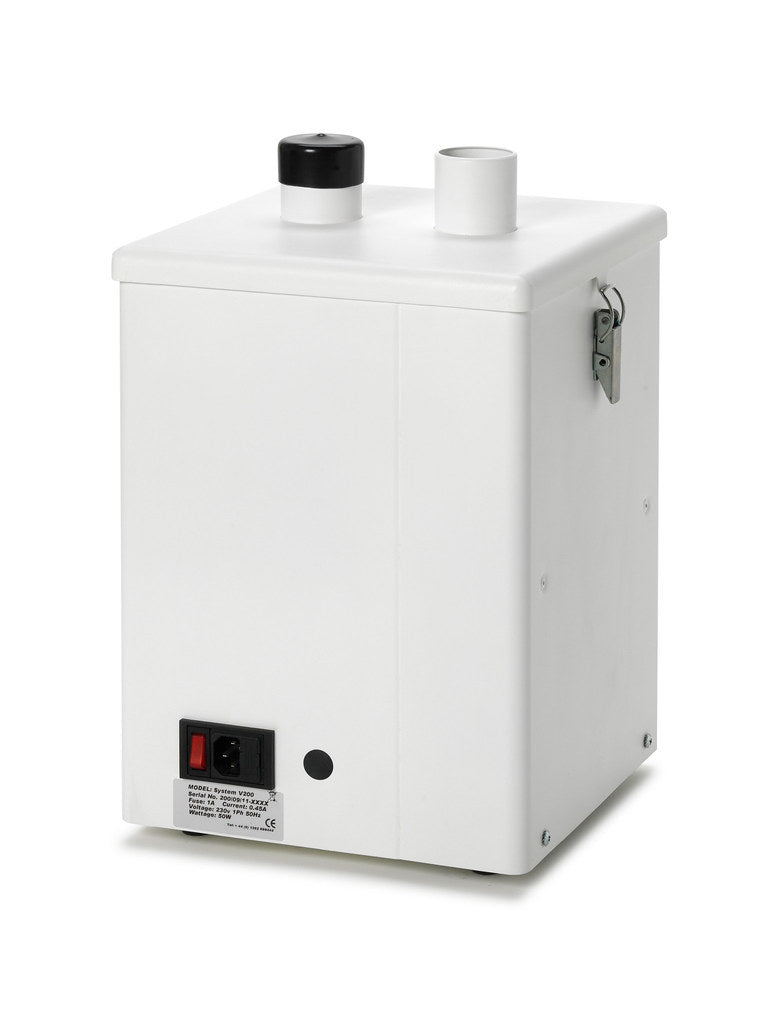

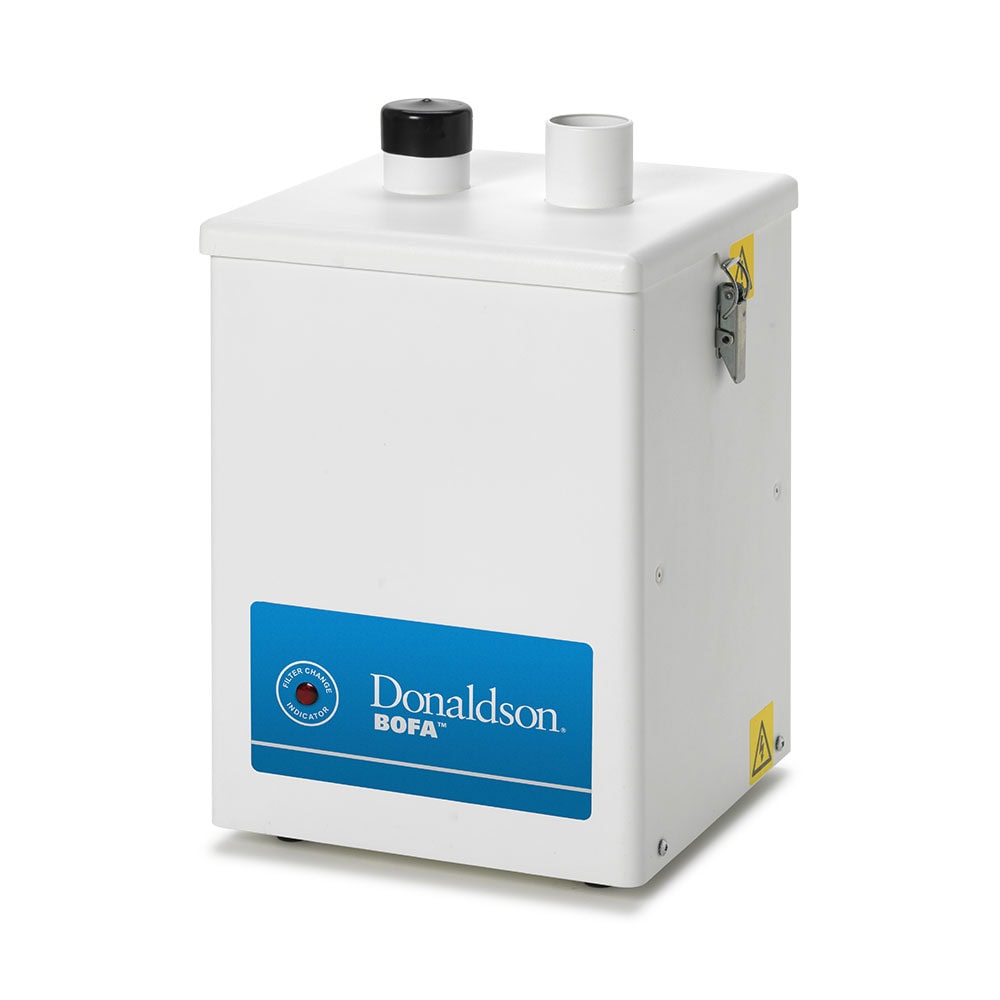

V 250
The V 250 is a dual-arm, portable solder fume extraction system. It comes complete with two extraction arms and an easy-to-follow installation kit containing everything required to set up two operators with ease. The minimal installation allows for convenient relocation when factory layouts change.
- Simple installation
- Portable
Approvals: UKCA and CE
Features
HEPA filter
Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.
Advanced carbon filters
Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.
Remote stop/start signal (optional)
Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.
Filter change signal (optional)
Our filter change signal alerts you when your filter is full and needs changing.
Variable airflow speed (optional)
Our variable airflow speed allows users to manually set the blower speed to the preferred airflow for their application.
Technical specification
| Imperial | Metric | |
|---|---|---|
| Dimensions (HxWxD) | 16.54 x 11.42 x 10.63” | 420 x 290 x 270 mm |
| Weight | 22 lbs | 10 kg |
| Airflow / Pressure | 106 cfm / 30 mbar | 180 m³/hr / 30 mbar |
| Electrical data | 115 V 60/50 Hz Full load current: 1.2 amps / 135 w |
230 V single-phase 1~ 50/60 Hz Full load current: 0.9 amps / 135 w |
| Noise level (at typical operating speed) | < 61 dBA | < 61 dBA |
| Cabinet construction | Powder-coated mild steel | Powder-coated mild steel |
