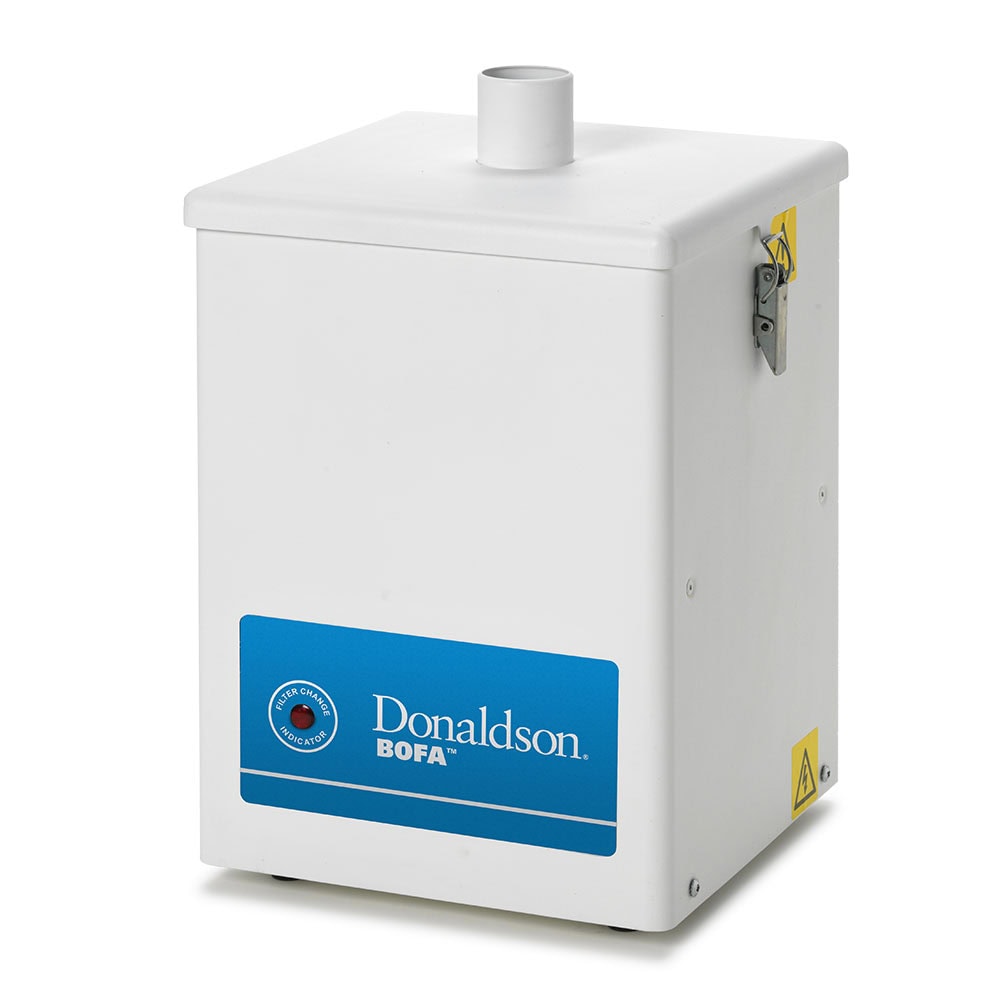

V 200
A single-arm extraction system for soldering applications
Ideal For: Hand soldering, lead-free soldering.

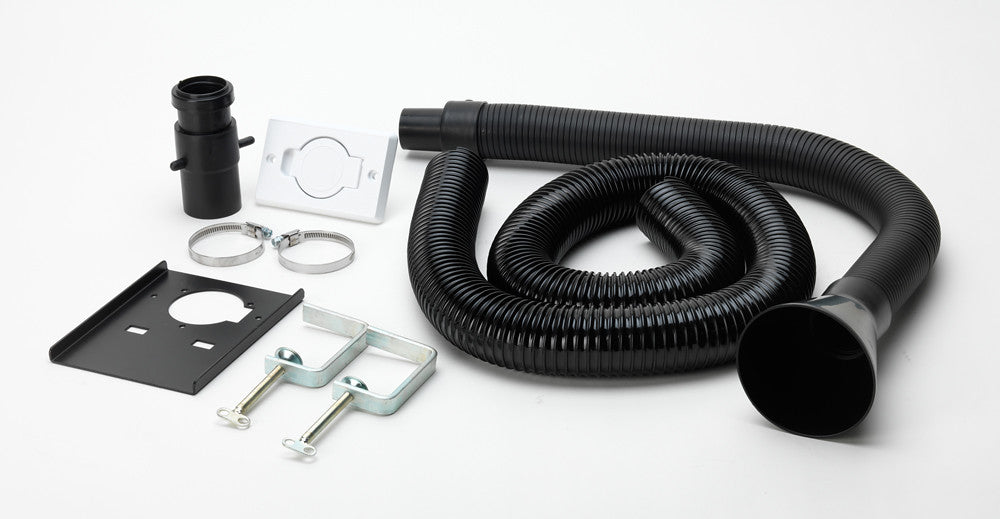

The V 200 is a single-arm, portable solder fume extraction system. It comes with an easy-to-follow installation kit containing everything required to set up a single operator with ease. The minimal installation allows for convenient relocation when factory layouts change.
- Simple installation
- Portable
Approvals: UKCA and CE
Features
HEPA filter
Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.
Advanced carbon filters
Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.
Technical specification
| Imperial | Metric | |
|---|---|---|
| Dimensions (HxWxD) | 16.54 x 11.42 x 10.63" | 420 x 290 x 270 mm |
| Weight | 22 lbs | 10 kg |
| Airflow / Pressure | 53 cfm / 20 mbar | 90 m³/hr / 20 mbar |
| Electrical data | 115 V 60/50 Hz Full load current: 0.85 amps / 107 w |
230 V 1 ph50/60 Hz Full load current: 0.45 amps / 90 w |
| Noise level (at typical operating speed) | < 54 dBA | < 54 dBA |
| Cabinet construction | Powder-coated mild steel | Powder-coated mild steel |
