3D PrintPRO 3

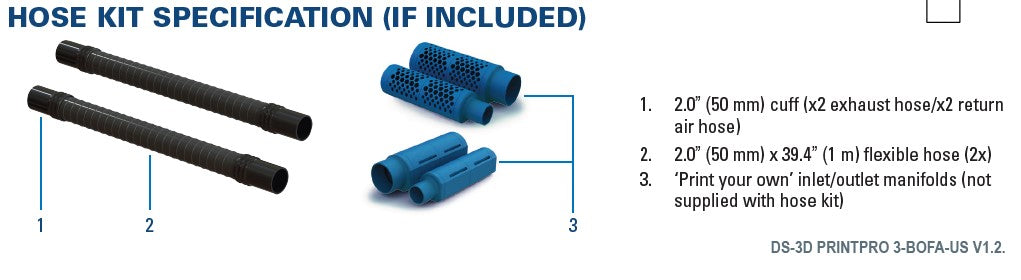

The 3D PrintPRO 3 filtration and atmosphere management system has been designed for 3D printers. It features an externally mounted plenum system that helps filter fumes generated during 3D printing processes. Optional accessories include a connection hose, a ‘stay put’ arm, a conical-shaped nozzle, and ‘print your own’ plenum instructions.
- Small footprint
- Low noise level
- Digital speed control
- Return airflow capabilities
This system is also available as part of the Shield & 3D PrintPRO 3 bundle.
Approvals: UKCA and CE
Features
HEPA filter
Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.
Advanced carbon filters
Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.
Multi-voltage sensing
Automatically senses the local voltage and adjusts accordingly.
Remote stop/start signal (optional)
Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.
Filter change signal (optional)
Our filter change signal alerts you when your filter is full and needs changing.
Technical specification
| Imperial | Metric | |
|---|---|---|
| Dimensions (HxWxD) | 15.75 x 11.42 x 11.81” | 400 x 290 x 300 mm |
| Weight | 24 lbs | 11 kg |
| Airflow / Pressure | 70 cfm / 20 mbar | 120 m³/hr / 20 mbar |
| Electrical data | 115 V 60/50 Hz Full load current: 1.3 amps |
230 V 1 ph 50/60 Hz Full load current: 0.7 amps |
| Noise level (at typical operating speed) | <57 dBA | <57 dBA |
| Cabinet construction | Powder-coated mild steel | Powder-coated mild steel |
