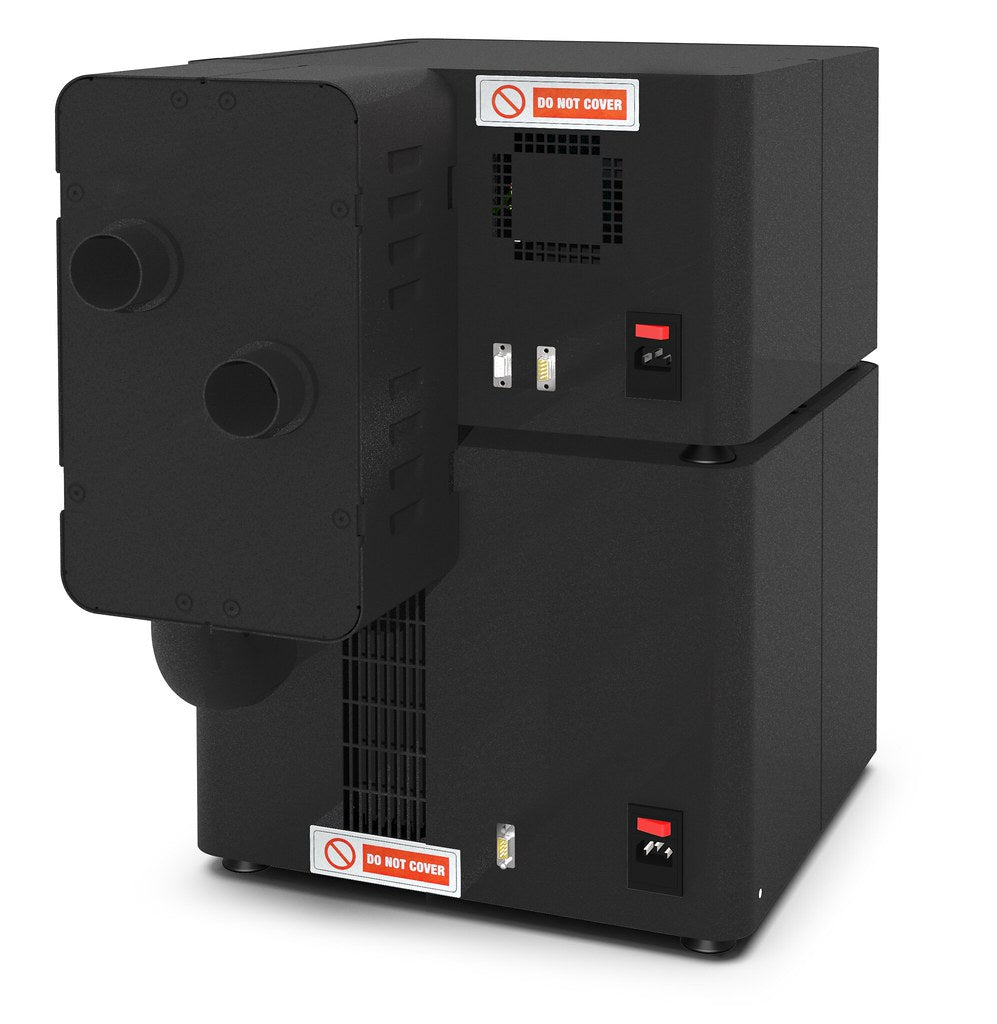

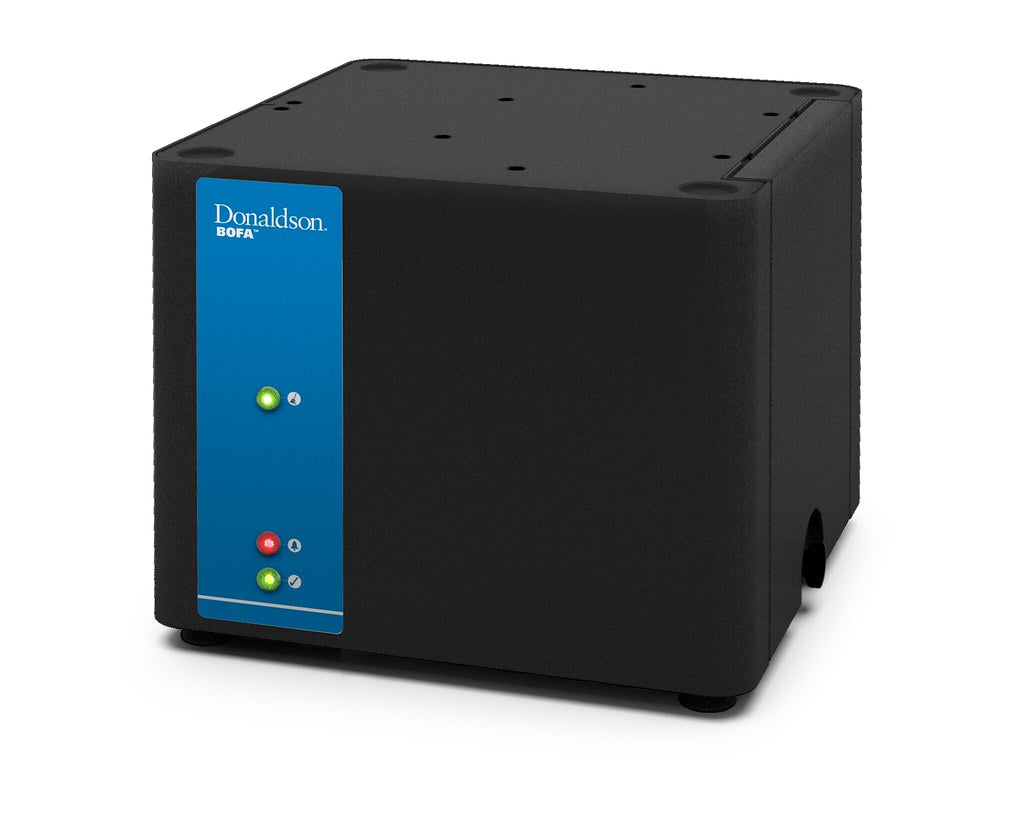

3D PrintPRO HT
The 3D PrintPRO HT provides a premium fume extraction solution for high-performing 3D printers operating with elevated chamber air temperatures. With a modular approach, the design caters to closed-loop continuous operation, open-loop intermittent operation, and the ability to do both with a pairing kit.
- Ability to filter gas up to 212°F/100°C
- Low noise level
- Low heat loss through insulated construction
Approvals: UKCA and CE
Features
HEPA filter
Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.
Advanced carbon filters
Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.
Multi-voltage sensing
Automatically senses the local voltage and adjusts accordingly.
Remote stop/start signal
Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.
Filter change signal
Our filter change signal alerts you when your filter is full and needs changing.
Technical specification
| Imperial | Metric | |
|---|---|---|
| Dimensions (HxWxD) | 23.94 x 15.98 x 23.23” | 608 x 406 x 590 mm |
| Weight | 110 lbs | 50 kg |
| Airflow / Pressure | 22 cfm | 80 m³/hr |
| Electrical data | 115 V 60 Hz Full load current: 2 amps |
230 V 50 Hz Full load current: 2 amps |
| Noise level (at typical operating speed) | <65 dBA | <65 dBA |
| Cabinet construction | Powder-coated mild steel | Powder-coated mild steel |
